14 | KL O- SHURE

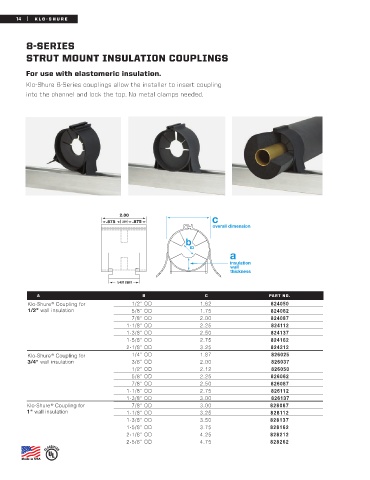

8-SERIES
14
STRUT MOUNT INSULATION COUPLINGS

For use with elastomeric insulation.

Klo-Shure 8-Series couplings allow the installer to insert coupling
into the channel and lock the top. No metal clamps needed.

A B C PART NO.
Klo-Shure Coupling for 1/2" OD 1.62 824050
®
1/2" wall insulation 5/8" OD 1.75 824062
7/8" OD 2.00 824087
1-1/8" OD 2.25 824112
1-3/8" OD 2.50 824137
1-5/8" OD 2.75 824162
2-1/8" OD 3.25 824212
Klo-Shure Coupling for 1/4" OD 1.87 826025
®
3/4" wall insulation 3/8" OD 2.00 826037
1/2" OD 2.12 826050
5/8" OD 2.25 826062
7/8" OD 2.50 826087
1-1/8" OD 2.75 826112
1-3/8" OD 3.00 826137
Klo-Shure Coupling for 7/8" OD 3.00 828087
®
1" wall insulation 1-1/8" OD 3.25 828112
1-3/8" OD 3.50 828137
1-5/8" OD 3.75 828162
2-1/8" OD 4.25 828212
2-5/8" OD 4.75 828262
