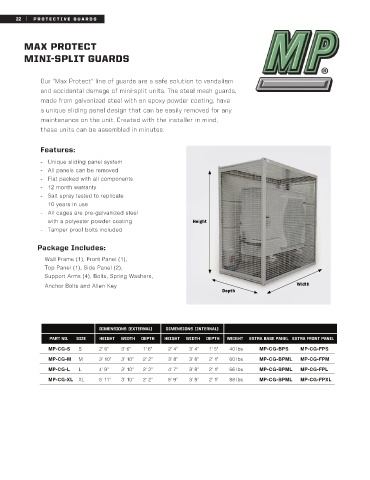

MAX PROTECT
22
MINI-SPLIT GUARDS

Our "Max Protect" line of guards are a safe solution to vandalism
and accidental damage of mini-split units. The steel mesh guards,
made from galvanized steel with an epoxy powder coating, have
a unique sliding panel design that can be easily removed for any
maintenance on the unit. Created with the installer in mind,
these units can be assembled in minutes.

Features:

- Unique sliding panel system
- All panels can be removed
- Flat packed with all components
- 12 month warranty
- Salt spray tested to replicate
10 years in use
- All cages are pre-galvanized steel
with a polyester powder coating Height
- Tamper proof bolts included

Package Includes:

Wall Frame (1), Front Panel (1),
Top Panel (1), Side Panel (2),
Support Arms (4), Bolts, Spring Washers,
Anchor Bolts and Allen Key Width
Depth

DIMENSIONS (EXTERNAL) DIMENSIONS (INTERNAL)
PART NO. S IZE HEIGHT WIDTH DEP TH HE IGHT WIDTH DEPTH WEIGHT EXTRA BASE PANEL EXTRA FRONT PANEL

MP-CG-S S 2' 6" 3' 6" 1' 6" 2' 4" 3' 4" 1' 5" 40 lbs MP-CG-BPS MP-CG-FPS
MP-CG-M M 3' 10" 3' 10" 2' 2" 3' 8" 3' 8" 2' 1" 60 lbs MP-CG-BPML MP-CG-FPM
MP-CG-L L 4' 9" 3' 10" 2' 2" 4' 7" 3' 8" 2' 1" 66 lbs MP-CG-BPML MP-CG-FPL
MP-CG-XL XL 5' 11" 3' 10" 2' 2" 5' 9" 3' 8" 2' 1" 88 lbs MP-CG-BPML MP-CG-FPXL
