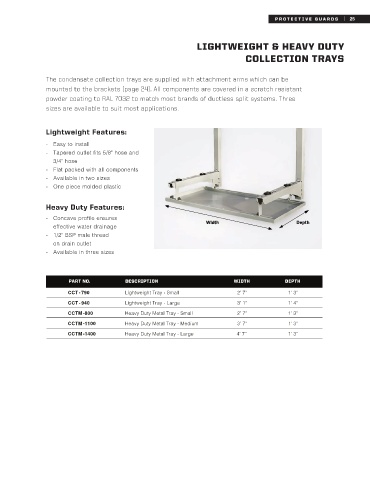

PRO TE CTIVE GU ARDS | 25

LIGHTWEIGHT & HEAVY DUTY

COLLECTION TRAYS

The condensate collection trays are supplied with attachment arms which can be
mounted to the brackets (page 24). All components are covered in a scratch resistant
powder coating to RAL 7032 to match most brands of ductless split systems. Three
sizes are available to suit most applications.

Lightweight Features:

- Easy to install
- Tapered outlet fits 5/8" hose and
3/4" hose
- Flat packed with all components
- Available in two sizes
- One piece molded plastic

Heavy Duty Features:
- Concave profile ensures
Width Depth
effective water drainage
- 1/2" BSP male thread
on drain outlet
- Available in three sizes

CCT- 790 Lightweight Tray - Small 2’ 7” 1' 3"
CCT- 940 Lightweight Tray - Large 3’ 1” 1' 4"
CCTM -800 Heavy Duty Metal Tray - Small 2’ 7” 1' 3"
CCTM -1100 Heavy Duty Metal Tray - Medium 3’ 7” 1' 3"
CCTM -1400 Heavy Duty Metal Tray - Large 4’ 7” 1' 3"
