HYDRA - ZORB | 27

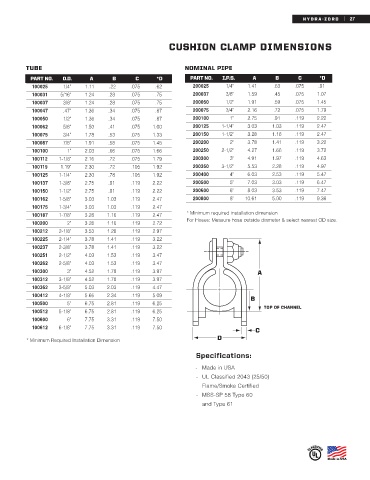

CUSHION CLAMP DIMENSIONS

TUBE NOMINAL PIPE

PART NO. O.D. A B C *D PART NO. I.P.S. A B C *D
100025 1/4" 1.11 .22 .075 .62 200025 1/4" 1.41 .63 .075 .91
100031 5/16" 1.24 .28 .075 .75 200037 3/8" 1.59 .45 .075 1.07
100037 3/8" 1.24 .28 .075 .75 200050 1/2" 1.91 .59 .075 1.45
100047 .47" 1.36 .34 .075 .87 200075 3/4" 2.16 .72 .075 1.79
100050 1/2" 1.36 .34 .075 .87 200100 1" 2.75 .91 .119 2.22
100062 5/8" 1.50 .41 .075 1.00 200125 1-1/4" 3.03 1.03 .119 2.47
100075 3/4" 1.78 .53 .075 1.33 200150 1-1/2" 3.28 1.16 .119 2.47
100087 7/8" 1.91 .58 .075 1.45 200200 2" 3.78 1.41 .119 3.22
100100 1" 2.03 .66 .075 1.66 200250 2-1/2" 4.27 1.66 .119 3.72
100112 1-1/8" 2.16 .72 .075 1.79 200300 3" 4.91 1.97 .119 4.63
100119 1.19" 2.30 .72 .105 1.92 200350 3-1/2" 5.53 2.28 .119 4.97
100125 1-1/4" 2.30 .78 .105 1.92 200400 4" 6.03 2.53 .119 5.47
100137 1-3/8" 2.75 .91 .119 2.22 200500 5" 7.03 3.03 .119 6.47
100150 1-1/2" 2.75 .91 .119 2.22 200600 6" 8.03 3.53 .119 7.47
100162 1-5/8" 3.03 1.03 .119 2.47 200800 8" 10.61 5.00 .119 9.36
100175 1-3/4" 3.03 1.03 .119 2.47
100187 1-7/8" 3.28 1.16 .119 2.47 * Minimum required installation dimension
For Hoses: Measure hose outside diameter & select nearest OD size.
100200 2" 3.28 1.16 .119 2.72
100212 2-1/8" 3.53 1.28 .119 2.97
100225 2-1/4" 3.78 1.41 .119 3.22
100237 2-3/8" 3.78 1.41 .119 3.22
100251 2-1/2" 4.03 1.53 .119 3.47
100262 2-5/8" 4.03 1.53 .119 3.47
100300 3" 4.52 1.78 .119 3.97 A
100312 3-1/8" 4.52 1.78 .119 3.97
100362 3-5/8" 5.03 2.03 .119 4.47
100412 4-1/8" 5.66 2.34 .119 5.09
B
100500 5" 6.75 2.81 .119 6.25
TOP OF CHANNEL
100512 5-1/8" 6.75 2.81 .119 6.25
100600 6" 7.75 3.31 .119 7.50
100612 6-1/8" 7.75 3.31 .119 7.50
C
D
* Minimum Required Installation Dimension
Specifications:

- Made in USA
- UL Classified 2043 (25/50)
Flame/Smoke Certified
- MSS-SP 58 Type 60
and Type 61
