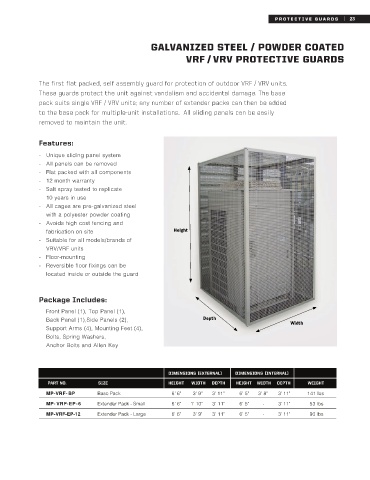

PRO TE CTIVE GU ARDS | 23

GALVANIZED STEEL / POWDER COATED
VRF / VRV PROTECTIVE GUARDS

The first flat packed, self assembly guard for protection of outdoor VRF / VRV units.
These guards protect the unit against vandalism and accidental damage. The base
pack suits single VRF / VRV units; any number of extender packs can then be added
to the base pack for multiple-unit installations. All sliding panels can be easily
removed to maintain the unit.

Features:

- Unique sliding panel system
- All panels can be removed
- Flat packed with all components
- 12 month warranty
- Salt spray tested to replicate
10 years in use
- All cages are pre-galvanized steel
with a polyester powder coating
- Avoids high cost fencing and
fabrication on site Height
- Suitable for all models/brands of
VRV/VRF units
- Floor-mounting
- Reversible floor fixings can be
located inside or outside the guard

Package Includes:

Front Panel (1), Top Panel (1),
Back Panel (1),Side Panels (2), Depth
Width
Support Arms (4), Mounting Feet (4),
Bolts, Spring Washers,
Anchor Bolts and Allen Key

DIMENSIONS (EXTERNAL) DIMENSIONS (INTERNAL)
PART NO. SIZE HEIGHT WIDTH DEPTH HEIGHT WIDTH DEPTH WEIGHT

MP-VRF- BP Base Pack 6' 6" 3' 9" 3' 11" 6' 5" 3' 8" 3' 11" 141 lbs
MP- VRF-EP-6 Extender Pack - Small 6' 6" 1' 10" 3' 11" 6' 5" - 3' 11" 53 lbs
MP-VRF-EP-12 Extender Pack - Large 6' 6" 3' 9" 3' 11" 6' 5" - 3' 11" 90 lbs
