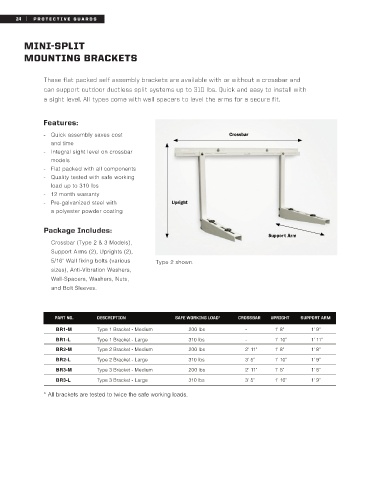

24 | PRO TE CTIVE GU ARDS

MINI-SPLIT
24
MOUNTING BRACKETS

These flat packed self assembly brackets are available with or without a crossbar and
can support outdoor ductless split systems up to 310 lbs. Quick and easy to install with
a sight level. All types come with wall spacers to level the arms for a secure fit.

Features:

- Quick assembly saves cost Crossbar
and time
- Integral sight level on crossbar
models
- Flat packed with all components
- Quality tested with safe working
load up to 310 lbs
- 12 month warranty
- Pre-galvanized steel with Upright
a polyester powder coating

Package Includes:
Support Arm
Crossbar (Type 2 & 3 Models),
Support Arms (2), Uprights (2),
5/16" Wall fixing bolts (various Type 2 shown.
sizes), Anti-Vibration Washers,
Wall-Spacers, Washers, Nuts,
and Bolt Sleeves.

PART NO. DESCRIPTION SAFE WORKING LOAD* CROSSBAR UPRIGHT SUPPORT ARM

BR1-M Type 1 Bracket - Medium 200 lbs - 1' 8" 1' 9"
BR1-L Type 1 Bracket - Large 310 lbs - 1' 10" 1' 11"
BR2-M Type 2 Bracket - Medium 200 lbs 2' 11" 1' 8" 1' 8"
BR2-L Type 2 Bracket - Large 310 lbs 3' 5" 1' 10" 1' 9"
BR3-M Type 3 Bracket - Medium 200 lbs 2' 11" 1' 8" 1' 8"
BR3-L Type 3 Bracket - Large 310 lbs 3' 5" 1' 10" 1' 9"

* All brackets are tested to twice the safe working loads.
