28 | P AR T S LIS T

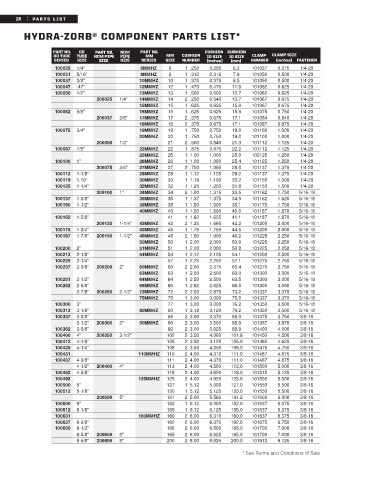

HYDRA-ZORB® COMPONENT PARTS LIST*

28
PART NO. OD PART NO. NOM PART NO. CUSHION CUSHION
OD TUBE TUBE NOM PIPE PIPE MM MM CUSHION ID SIZE ID SIZE CLAMP CLAMP SIZE
SERIES SIZE SIZE SIZE SERIES SIZE NUMBER (inches) (mm) NUMBER (inches) FASTENER
100025 1/4" 6MMHZ 6 1 .250 0.250 6.3 101037 0.375 1/4-20
100031 5/16" 8MMHZ 8 1 .312 0.312 7.9 101050 0.500 1/4-20
100037 3/8" 10MMHZ 10 1 .375 0.375 9.5 101050 0.500 1/4-20
100047 .47" 12MMHZ 12 1 .470 0.470 11.9 101062 0.625 1/4-20
100050 1/2" 13MMHZ 13 1 .500 0.500 12.7 101062 0.625 1/4-20
200025 1/4" 14MMHZ 14 2 .250 0.540 13.7 101067 0.675 1/4-20
15MMHZ 15 1 .625 0.625 15.9 101067 0.675 1/4-20
100062 5/8" 16MMHZ 16 1 .625 0.625 15.9 101075 0.750 1/4-20
200037 3/8" 17MMHZ 17 2 .375 0.675 17.1 101084 0.840 1/4-20
18MMHZ 18 2 .375 0.675 17.1 101087 0.875 1/4-20
100075 3/4" 19MMHZ 19 1 .750 0.750 19.0 101100 1.000 1/4-20
20MMHZ 20 1 .750 0.750 19.0 101100 1.000 1/4-20
200050 1/2" 21 2 .500 0.840 21.3 101112 1.125 1/4-20
100087 7/8" 22MMHZ 22 1 .875 0.875 22.2 101112 1.125 1/4-20
25MMHZ 25 1 1.00 1.000 25.0 100125 1.250 1/4-20
100100 1" 26MMHZ 26 1 1.00 1.000 25.4 101125 1.250 1/4-20
200075 3/4" 27MMHZ 27 2 .750 1.050 28.0 101137 1.375 1/4-20
100112 1-1/8" 28MMHZ 28 1 1.12 1.125 29.2 101137 1.375 1/4-20
100119 1.19" 30MMHZ 30 1 1.19 1.190 30.2 101150 1.500 1/4-20
100125 1-1/4" 32MMHZ 32 1 1.25 1.250 31.8 101150 1.500 1/4-20
200100 1" 34MMHZ 34 2 1.00 1.315 33.5 101162 1.750 5/16-18
100137 1-3/8" 35MMHZ 35 1 1.37 1.375 34.9 101162 1.620 5/16-18
100150 1-1/2" 38MMHZ 38 1 1.50 1.500 38.1 101175 1.750 5/16-18
40MMHZ 40 1 1.50 1.500 40.0 101187 1.870 5/16-18
100162 1-5/8" 41 1 1.62 1.625 41.1 101187 1.870 5/16-18
200125 1-1/4" 42MMHZ 42 2 1.25 1.660 42.2 101200 2.000 5/16-18
100175 1-3/4" 45MMHZ 45 1 1.75 1.750 44.5 101200 2.000 5/16-18
100187 1-7/8" 200150 1-1/2" 48MMHZ 48 2 1.50 1.900 48.2 101225 2.250 5/16-18
50MMHZ 50 1 2.00 2.000 50.0 101225 2.250 5/16-18
100200 2" 51MMHZ 51 1 2.00 2.000 50.8 101225 2.250 5/16-18
100212 2-1/8" 54MMHZ 54 1 2.12 2.125 54.1 101250 2.500 5/16-18
100225 2-1/4" 57 1 2.25 2.250 57.1 101275 2.750 5/16-18
100237 2-3/8" 200200 2" 60MMHZ 60 2 2.00 2.375 60.4 101275 2.750 5/16-18
63MMHZ 63 1 2.50 2.500 63.0 101300 3.000 5/16-18
100251 2-1/2" 64MMHZ 64 1 2.50 2.500 63.5 101300 3.000 5/16-18
100262 2-5/8" 66MMHZ 66 1 2.62 2.625 66.5 101300 3.000 5/16-18
2-7/8" 200250 2-1/2" 72MMHZ 72 2 2.50 2.875 73.2 101337 3.370 5/16-18
75MMHZ 75 1 3.00 3.000 75.0 101337 3.370 5/16-18
100300 3" 77 1 3.00 3.000 76.2 101350 3.500 5/16-18
100312 3-1/8" 80MMHZ 80 1 3.12 3.120 79.2 101350 3.500 5/16-18
100337 3-3/8" 86 2 3.00 3.370 88.9 101375 3.750 3/8-16
3-1/2" 200300 3" 90MMHZ 90 2 3.00 3.500 88.9 101387 3.875 3/8-16
100362 3-5/8" 92 2 3.00 3.625 88.9 101400 4.000 3/8-16
100400 4" 200350 3-1/2" 102 2 3.50 4.000 101.6 101450 4.500 3/8-16
100412 4-1/8" 105 2 3.50 4.120 105.0 101462 4.625 3/8-16
100425 4-1/4" 108 2 3.50 4.250 108.0 101475 4.750 3/8-16
100431 110MMHZ 110 2 4.00 4.310 111.0 101487 4.875 3/8-16
100437 4-3/8" 111 2 4.00 4.370 111.0 101487 4.875 3/8-16
4-1/2" 200400 4" 113 2 4.00 4.500 113.0 101500 5.000 3/8-16
100462 4-5/8" 118 2 4.00 4.620 118.0 101512 5.125 3/8-16
100492 125MMHZ 125 2 4.00 4.920 125.0 101550 5.500 3/8-16
100500 5" 127 1 5.12 5.000 127.0 101550 5.500 3/8-16
100512 5-1/8" 130 1 5.12 5.125 130.0 101550 5.500 3/8-16
200500 5" 141 2 5.00 5.563 141.2 101600 6.000 3/8-16
100600 6" 152 1 6.12 6.000 152.0 101637 6.375 3/8-16
100612 6-1/8" 155 1 6.12 6.125 155.0 101637 6.375 3/8-16
100631 160MMHZ 160 2 6.00 6.310 160.0 101637 6.375 3/8-16
100637 6-3/8" 162 2 6.00 6.370 162.0 101675 6.750 3/8-16
100650 6-1/2" 165 2 6.00 6.500 165.0 101700 7.000 3/8-16
6-5/8" 200600 6" 165 2 6.00 6.625 165.0 101700 7.000 3/8-16
8-5/8" 200800 8" 200 2 8.00 8.625 200.0 101912 9.125 3/8-16

* See Terms and Conditions of Sale
